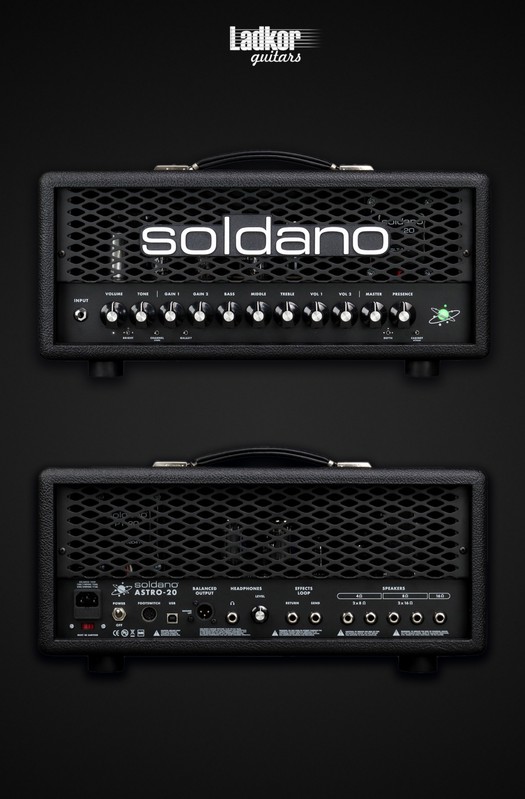

Soldano ASTRO-20 3 Channel All-Tube Head NEW

Brand New. Authorized Dealer

Soldano ASTRO-20 Head — A Universe of Tube Tone

The ASTRO-20 is a 3-channel, 4-Galaxy, assembled-in-USA head that combines authentic all-tube tone with features designed for the modern guitarist.
Created by Mike Soldano, this 20W powerhouse delivers the flexibility and control demanded by today’s stage and studio environments.

⚡ Overview

Despite its advanced features, the ASTRO-20 remains a pure all-tube amplifier powered by two 6V6 and four 12AX7 tubes.
Its 3-channel design (Clean, Overdrive 1, Overdrive 2) allows versatile tone shaping from crystal-clean American-style tones to Soldano’s legendary overdrive.

⚠️ High demand: current lead time 3–10 days.

🔥 3 Channels of All-Tube Tone

• Clean / Green Galaxy: High-headroom, American-inspired clarity with a 3-way Bright switch.

• Overdrive 1 & 2: Independent Gain & Volume, shared EQ (Bass, Middle, Treble).
  Assign Blue, Purple, or Red Galaxies independently for each OD channel.

🌌 The Galaxies

• Blue Galaxy – bluesy cleans to fat, sparkling hard rock tones.

• Purple Galaxy – tighter response, higher gain, and focused punch.

• Red Galaxy – the iconic Soldano high-gain lead tone.

Unlimited combinations — Red/Red, Blue/Red, or Purple/Red — make the ASTRO-20 your personal tone universe.

⭐ STAR Display

The STAR display shows which Galaxy is active (Green, Blue, Purple, or Red) while six “planets” indicate the current IR preset.
When Cab Bypass is engaged, the planets dim — simple, elegant, effective.

🎧 Cab Sim & Cabless Operation

The ASTRO-20 includes six onboard IR cabinet simulations, assignable per channel.
Run direct to FOH, recording interface, or headphones — no speaker cabinet required.
Manage and load custom IRs with the Soldano Editor Software.

⚙️ Tone Control & MIDI Flexibility

• Presence — tight and focused or open and airy.

• 3-position Depth Switch — shapes the power amp’s bass response.

• 4-Button MIDI Footswitch — recall any channel, Galaxy, or IR.

• Up to 128 presets with external MIDI controllers.

🧠 Soldano Editor Software

Easily assign Galaxies, manage your IR library, and organize presets via a user-friendly interface.
Save up to 128 MIDI presets.

• Windows 7 (64-Bit) or higher

• macOS 10.15 or higher

💎 Features

• 20W lightweight all-tube guitar amplifier

• 3 Independent Channels

• Overdrive Galaxies: Blue / Purple / Red

• Low-Latency IR Cabinet Simulation (bypassable)

• 6 IR Presets, individually programmable per channel

• 4-button programmable MIDI Footswitch included

• USB Software Editor

• Limited 5-Year Warranty

• Assembled in the USA

📋 Technical Specifications

• 20W lightweight all-tube guitar amplifier

• Cascading-gain preamp design

• 3 Independent Channels:

  • Master: Volume, Presence, 3-position Depth

  • Clean Channel (Green Galaxy): Volume, Tone, 3-way Bright

  • Overdrive Channels: Independent Gain & Volume, shared 3-band EQ

• Overdrive Galaxies: Blue / Purple / Red

• Ultra-transparent Series FX Loop

• XLR Balanced Output with Ground Lift

• Low-Latency IR Cabinet Simulation (bypassable)

• 6 IR presets (individually programmable per channel)

• Load your own IRs via Software Editor

• MIDI Programmable (up to 128 presets)

• 4-Button MIDI Footswitch + 7-Pin Cable included

• USB Software Editor + 6’ USB Cable

• Cabless Operation

• Headphone Output with dedicated Volume Control

• Weight: 26 lbs

• Dimensions: 19” (W) × 9.75” (D) × 9” (H)

• Tubes: 4 × 12AX7, 2 × 6V6

“If it doesn’t sound good, all the features in the world won’t make a difference.”
— Mike Soldano

🎸 Soldano ASTRO-20 — authentic tube tone meets digital freedom.
Built for the stage, refined for the studio, and ready for any player who demands the best.
